UV LED PKG

PRODUCT

Elphoton delivers the highest satisfaction with proven
performance and quality.

Elphoton Inc. is dedicated to contributing to the innovation of human life through light.
We strive to deliver the highest satisfaction to our customers by providing top performance and quality.

  • 3535RM Standard
  • 1818ZM Compact
  • LoSa Narrow Beam
  • HUV High Reliability

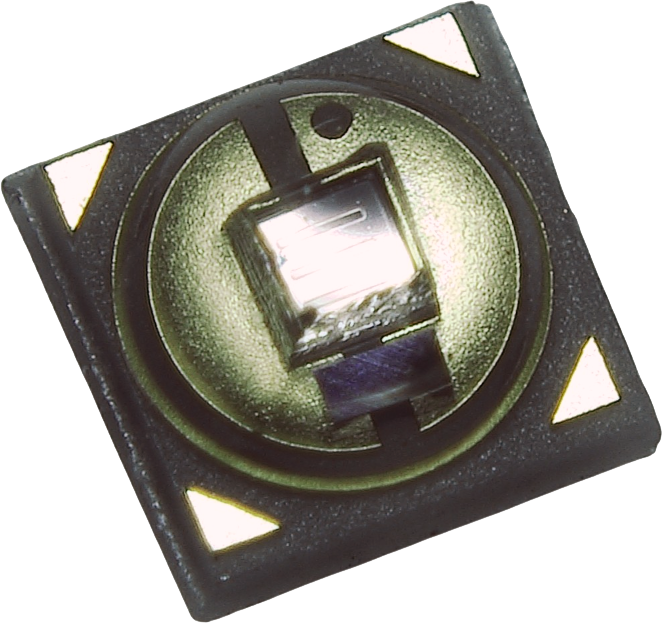

3535RM Standard

Features
  • Form factor size: 3.5 × 3.5mm
  • High light extraction efficiency

    Chip-to-package efficiency ↑ 40-50%

  • Wide beam angle: 150°–160°
  • Wavelength options: 265 / 275 / 285 / 305 nm

    Custom wavelengths available

  • RoHS compliant
Application
  • Disinfection & Sterilization
  • UV Curing Systems
  • Analytical & Measurement Instruments
  • Phototherapy Solutions
  • Medical / Healthcare UVC Devices
Specification
Model NO Peak Wavelength If[mA] Pout Vf Datasheet
3535RS Typ. 275nm 30mA 12mW 6.0V PDF DOWNLOAD
3535RM Typ. 275nm 100mA 45mW 6.0V PDF DOWNLOAD
3535RS_1AA Typ. 275nm 30mA 12mW 6.0V PDF DOWNLOAD
3535RM_1AA Typ. 275nm 100mA 45mW 6.0V PDF DOWNLOAD
3535ZL Typ. 275nm 350mA 130mW 6.0V PDF DOWNLOAD
3535ZL-280 Typ. 285nm 350mA 130mW 6.0V PDF DOWNLOAD
3535RM20 Typ. 305nm 100mA 45mW 6.0V PDF DOWNLOAD
3535ZL-340 Typ. 340nm 350mA 150mW 6.0V PDF DOWNLOAD

1818ZM Compact

Features
  • Single-chip, dual-pad design
  • Ultra-compact form factor: 18 × 18 mm
  • Supports up to 4 packages within a standard UVC package area (3.5 X 3.5 ㎣)
  • Wavelength options: 265 / 275 / 285 / 305 nm
  • Custom wavelengths available
Application
  • Disinfection & Sterilization
  • UV Curing Systems
  • Water Treatment Solutions
  • Medical / Healthcare UVC Devices
  • Analytical & Measurement Instruments
Specification
Model NO Peak Wavelength If[mA] Pout Vf Datasheet
1818ZS Typ. 275nm 20mA 9mW 6.0V PDF DOWNLOAD
1818ZM Typ. 275nm 100mA 45mW 6.0V PDF DOWNLOAD
1818ZM Typ. 285nm 100mA 45mW 6.0V PDF DOWNLOAD

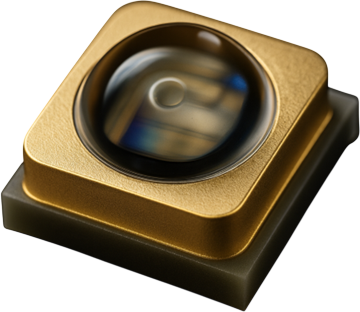

LoSa Narrow Beam

Features
  • High reliability under high-temperature and high-humidity conditions
  • Form factor size: 3.6 × 3.6mm
  • Multi-angle options: 120° / 60°
  • Power lineup: 70 mW – 170 mW
  • No lens detachment even under strong UVC irradiation
  • Standard formfactor
  • Wavelength options:
    235 / 255 / 265 / 275 / 285 / 295 / 305 / 315 / 325 / 335 nm
  • RoHS compliant
  • Custom wavelengths available
Application
  • Air Disinfection Modules
  • Sensor & Instrument Calibration
  • Medical / Healthcare UVC Devices
  • UV Curing Systems
Specification
Model NO Peak Wavelength If[mA] Pout Vf Datasheet
LoSa-V60-255 Typ. 255nm 350mA 70mW 6.0V PDF DOWNLOAD
LoSa-V60-265 Typ. 265nm 350mA 120mW 6.0V PDF DOWNLOAD
LoSa-V60-275 Typ. 275nm 350mA 130mW 6.0V PDF DOWNLOAD
LoSa-V60-M275 Typ. 275nm 100mA 45mW 6.0V PDF DOWNLOAD
LoSa-V60-285 Typ. 285nm 350mA 130mW 6.0V PDF DOWNLOAD
LoSa-V60-305 Typ. 307nm 350mA 130mW 6.0V PDF DOWNLOAD
LoSa-V60-330 Typ. 330nm 350mA 150mW 6.0V PDF DOWNLOAD
LoSa-V60-340 Typ. 340nm 350mA 120mW 6.0V PDF DOWNLOAD
LoSa-V120-275 Typ. 275nm 350mA 120mW 6.0V PDF DOWNLOAD
LoSa-V120-285 Typ. 285nm 350mA 120mW 6.0V PDF DOWNLOAD

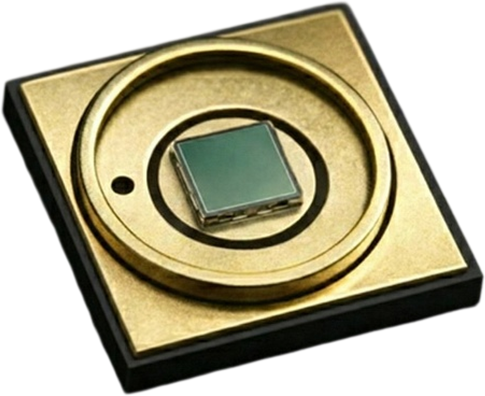

HUV High Reliability

Features
  • 85/85 reliability guaranteed
  • AEC-Q102 qualified
  • Chip-level high hermetic sealing
  • Form factor size: 3.5 × 3.5mm
  • Multi-beam-angle options: 30° / 60° / 120° / 140°(HUVD)
  • Wavelength options: 265 / 275 / 305 nm
  • RoHS compliant
Application
  • High-Humidity Environments
  • Water Treatment Plants
  • Air Conditioning Systems
  • Automotive HVAC
  • Home Appliances
  • Industrial Buildings
Specification
Model NO Peak Wavelength If[mA] Pout Vf Datasheet
HUVD-MZ0 265 100 30 6 In Development
HUVD-LZ0 275 350 105 6 In Development
HUVL-V30-MZ0 265 100 37 6 In Development
HUVL-V30-LZ0 275 350 130 6 In Development
HUVL-V60-MZ0 265 100 40 6 In Development
HUVL-V60-LZ0 275 350 140 6 In Development
HUVL-V120-MZ0 265 100 33 6 In Development
HUVL-V120-LZ0 275 350 115 6 In Development
